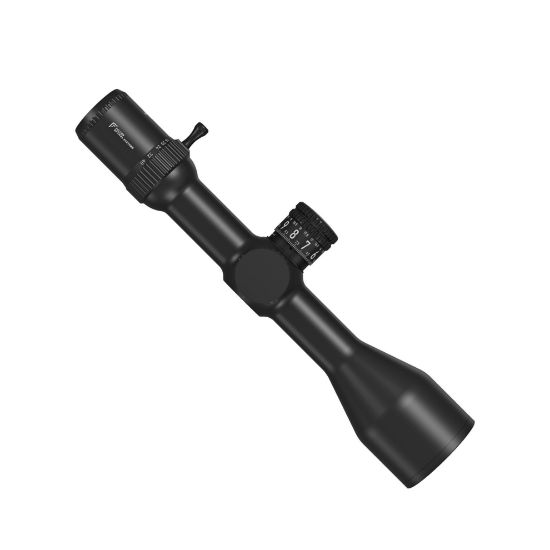

S40i+ 4-40x58i FFP ED Online Manual

Magnification Range:  4-40x

Field of View @ 100m:  9.72m – 0.99M

Eye Relief:  112mm (4x) / 100mm (40x)

Minimum Parallax Distance:  10M

Total Elevation Adjustment Range:  29.0MRAD

Adjustment Value Per Click:  0.1MRAD

Adjustment Per Turn:  10.0MRAD

Weight:   1120g

Tube Diameter:   34mm

Construction:   1 Piece Tube/Saddle/Objective

Objective Lens Diameter:   58mm

Outer Objective Diameter:   68.5mm

Outer Ocular Diameter:   47.5mm

• Nitrogen Purged.
• Waterproof Tested.
• Recoil tested up to and including .338LM, .50BMG. Spring-Piston safe with correct mounting, good quality mount rings and correct torque values adhered to.
• Hand Tested and Quality Control passed in the UK.
• No charge, no time limit warranty.
