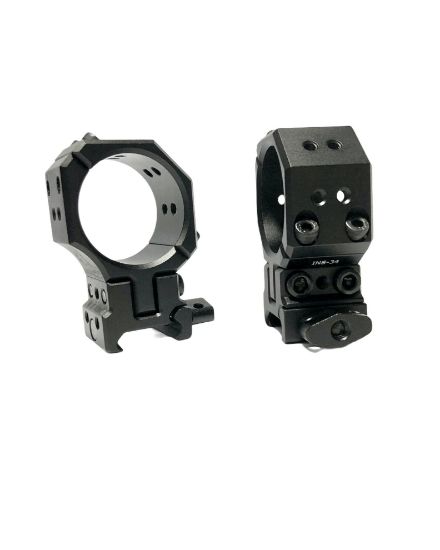

Infinity Elevation Ajustable Scope Mount 34mm Ring Picatinny INS-34

Eagle Vision 34mm Scope Ring Mounts

The Infinity Elevation Adjustable Scope Mount is a clever and highly practical 34mm scope ring system that allows you to raise or lower the rear of your scope along a guided path. This gives you up to 4.5 mm of vertical adjustment without touching your scope’s turrets perfect for long range shooting, bullpups, or when you simply need more elevation range.

By keeping the front ring low and raising the rear ring, you can achieve significantly more elevation adjustment while keeping the optical centre of your scope intact. It also solves clearance issues when your objective bell sits too close to the barrel or shroud.

Key Features

• Adjustable height from 65 mm to 69.5 mm (4.5 mm of elevation travel)
• Low profile (38 mm) or raised profile (42.5 mm) centre height
• 34 mm ring diameter
• Fits 20 mm Picatinny rails
• Lockable in any position with two screws
• Lightweight at only 92 g per ring
• Ideal for long range shooting and bullpup rifles

Package Includes

• 2 × Infinity adjustable 34 mm scope rings
• 2 × Allen keys (different sizes)
• 4 × small spare screws
• 1 × large spare screw
• Protection ring fabric
• Waterproof storage case

Torque Specifications

• Ring screws: 15–20 inch-pounds (1.68–2.25 Nm)
• Adjustable side screws: 53–71 inch-pounds (6–8 Nm)
• Picatinny nuts: 53–71 inch-pounds (6–8 Nm)
