HIK Micro Ultimate Thunder Smart Thermal Weapon Scope 40A

Hik Micro 2.1x 35mm 35mK 384x288 17um Thunder Smart Thermal Weapon Scope 40A

The HIK Micro Ultimate Thunder uses interchangeable lens systems to deliver three thermal products in one compact system. The 35mm Thunder thermal module is the centre of the system with its 35mm lens system and 384x288px, 17um sensor delivering excellent image quality. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The thunder shares much of its software with the range of HIK Micro monoculars and anyone who has used one of the other products will instantly feel at home. The Thunder offers 4 colour palettes, white-hot, black hot, red hot and fusion. The thunder also connects to the T-Vision app to seamlessly share or record your shooting experience.

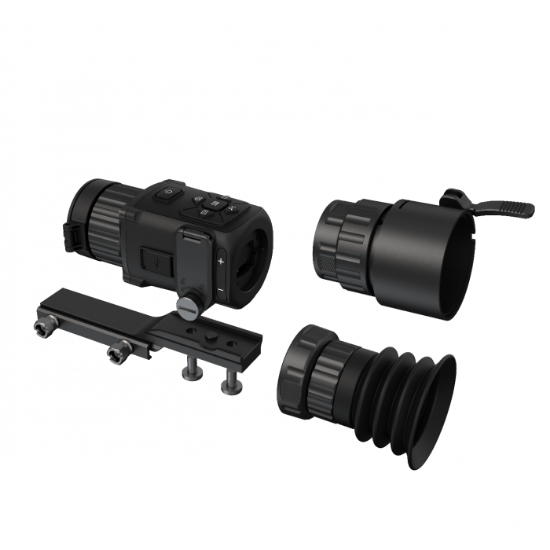

The ultimate thunder is supplied with a range of lenses and accessories that allow you to use it in a variety of configurations. Attach the riflescope lens and your thunder will show you a reticle and zeroing menu, add the supplied Picatinny rail and securely attach it to your rifle and you are ready to start shooting. Remove the rail and disable the reticle and you have a high performance thermal monocular.

Swap the interchangeable lenses and your thunder will automatically change to the clip-on software, you are now ready to use the scope clamp to add the thunder to the front of your standard optical scope, transforming it into a thermal riflescope. The easy to use zero menu allows you to adjust the Thunder’s screen to match the zero point of your rifle. Then you can quickly remove or add the thunder without any shift in your point of impact.

This version of the ultimate thunder is supplied with the 60A scope clamp suitable for scope bells in the following sizes 62-66mm.

More Information

More Information

Brand	HIK Micro
Popularity	HIK Micro Ultimate Thunder 2.1x 35mm 35mK 384x288 17um Smart Thermal Weapon Scope with 60A Scope Clamp
SKU	HM-TH35-ULT60A
Unit Type	Thermal
Colour Palettes	Yes
Detection Range	1200m
Display Resolution	1024x768
Display Type	LCOS
FOV @ 100 yards	10.0°
Magnification (Digital)	8x
Magnification (Optical)	2.1x
NETD	<35mK
Objective Lens Diameter	35mm
Operating Temperature	-20/+40°C
Pixel Pitch	17μm
Refresh Rate	50HZ
Sensor Resolution	384x288
Video / Sound Recording	Yes
WiFi	Yes

Specs

Main

• Sensor: 384×288px @ 17µm
• Objective Lens (Focal Length): 35 mm / F1.0
• Detection Range (Human 1.8m x 0.5m): 1235 m
• Magnification (optical): 2.14x



Sensor

• Type: Uncooled Focal Plane Arrays
• Resolution, pixels: 384 × 288 px
• Pixel pitch, um: 17µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK



Optics

• Objective lens: F1.0
• Magnification (optical): 2.14 x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Field of view: 10.0° × 8° (H × V)
• Recoil resistance: 750g/ms = 6750 J



Display

• Type: 9.9 mm LCOS
• Resolution, Pixels: 1024 x 768
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture in picture: Yes



Reticle Options

• Number of preloaded reticles: 5 Reticle choices
• Reticle Colours: White, Green, Red



Video Recorder

• Video recording: Yes
• Picture snapshot: Yes
• Built-in memory, GB: 16



Additional features

• Hot tracking: Yes
• WIKI Hot spot: Yes
• T-Vision App support: Yes



Environmental

• Degree of protection, IP code: IPX7
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -20 °C to 55 °C



Weight & size

• Dimensions, mm: 187.2 mm × 62.5 mm × 59.2 mm
• Weight, Kg: 0.41 kg



Power Supply

• Operating time on battery (WIFI & Hot tracking disabled): 4.5 hours continuous running
• Charging interface: USB-C
• Battery type: Replaceable CR123A



Warranty

• Main Unit: 3 Years
• Battery: 2 Years
