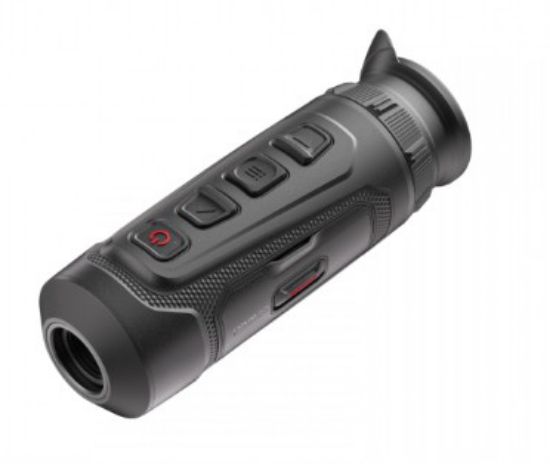

HIKMICRO Lynx 3.0 10mm Thermal Monocular LE10

Hikmicro Lynx Thermal Monocular

The HIKMICRO Lynx 3.0 LE10 redefines what entry-level thermal imagers can deliver, combining precision, performance, and portability in a professional-grade package. Designed for field professionals and enthusiasts alike, the LE10 is perfect for wildlife observation, surveillance, search and rescue, and tactical operations.

Crystal-Clear Imaging
Equipped with a 256×192 thermal detector and a 9.7mm F1.0 lens, the LE10 provides a 1.4× base magnification and an 18° field of view, delivering sharp, detailed images with a detection range of up to 500 metres. AI-driven Image Pro 3.0 and Zoom Pro algorithms ensure enhanced image clarity and stability, even in challenging conditions.

Seamless, Silent Operation
The HIKMICRO Shutterless Image System (HSIS) eliminates shutter noise, allowing continuous, uninterrupted observation. Whether tracking wildlife or conducting covert operations, the LE10 delivers smooth, reliable imaging without disruption.

Compact, Durable, and Enduring
Weighing just 291.5 grams, the LE10 is pocket-sized and field-ready. Its replaceable 18650 battery provides up to 5.5 hours of runtime at -20°C, making it ideal for extended outdoor use. Built to IP67 standards, it is dustproof, waterproof, and rugged enough to withstand demanding environments.

Versatile Features

• Display: 0.39” 1024×768 AMOLED for high-contrast visuals

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Focus: Focus-free with a minimum focusing distance of 3.4 m

• Advanced Functions: PIP, Hotspot, Hot Track, Distance Measurement, Audio Recording

• Storage: 64GB built-in EMMC with snapshot and video capture capabilities

• Connectivity: 2.4/5G WiFi for sharing and remote access

Technical Highlights:

• Max Resolution: 256×192 | Frame Rate: 50 Hz | Pixel Interval: 12 μm

• NETD: <20 mK (@25°C) | Response Waveband: 8–14 μm

• Magnification: 1.4× – 11.2× (8× digital zoom) | Exit Pupil: 6 mm

• Eye Relief: 20 mm | Diopter Range: -5 D to +3 D | Protection Level: IP67
