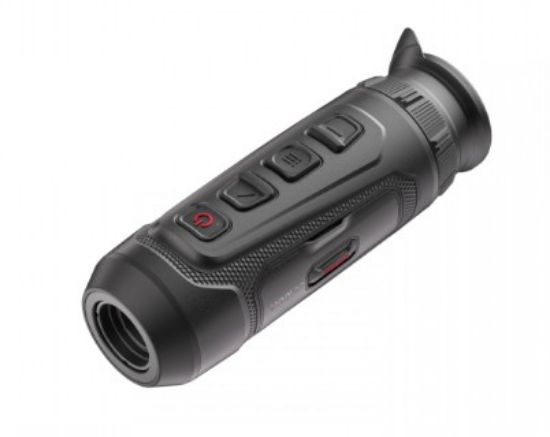

HIKMICRO Lynx 3.0 15mm Thermal Monocular LH15

Hikmicro Lynx Thermal Monocular

The HIKMICRO Lynx 3.0 LH15 is a professional-grade thermal monocular engineered for reliability and precise imaging, making it ideal for forested or mid-range operations, tactical applications, and wildlife observation. Featuring a 320×240 thermal detector and a 15mm F1.0 lens, the LH15 offers 2.2× base magnification, an 11.7° field of view, and a detection range of up to 750 metres, providing clear and dependable imaging at close to medium distances.

AI-Enhanced Clarity

Powered by Image Pro 3.0 and Zoom Pro algorithms, the LH15 delivers outstanding contrast, detail, and image stability across dynamic environments. The HIKMICRO Shutterless Image System (HSIS) ensures smooth, silent operation, allowing uninterrupted and discreet observation in sensitive or tactical scenarios.

Portable and Durable

Weighing just 296.5 grams, the LH15 is compact, lightweight, and comfortable to carry in the field. Its replaceable 18650 battery provides up to 5 hours of runtime at -20°C, supporting extended use in challenging conditions. The device is IP67 rated, offering reliable dust and water protection for rugged outdoor operations.

Versatile Features

• Display: 0.39” 1024×768 AMOLED

• Focus Mode: Focus-free, minimum distance 7 m

• Magnification: 2.2× – 17.6× (8× digital zoom)

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Advanced Functions: PIP, Hotspot, Hot Track, Distance Measurement, Audio Recording

• Connectivity: Sync Pro, WiFi sharing

• Protection: IP67 rugged design

Technical Highlights

• Max Resolution: 320×240 | Frame Rate: 50 Hz | NETD: <18 mK (@25°C)

• Response Waveband: 8–14 μm | Exit Pupil: 6 mm | Eye Relief: 20 mm

• Weight: 296.5 g | Battery: Replaceable & rechargeable 18650

• Work Temperature / Humidity: -30°C to 45°C; Humidity ≤90%

Specs

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Lens (Focal Length): 15 mm, F1.0

• Min. Focusing Distance: 7 m

• Field of View (H × V), Degrees / m @100 m: 11.7° × 8.8° / 20.5 m × 15.4 m

• Detection Range: 750 m

• Contrast & Brightness Adjustment: Yes

• Diopter Range: -5 D to +3 D

• Tone Adjustment: Cold, Warm

• Zoom Pro: Yes

• HSIS: Yes

• Image Pro 3.0: Yes

• Sync Pro: Yes

Features

• 320×240 thermal detector with NETD < 18 mK

• 15mm F1.0 lens with 750 m detection range

• AI-powered Image Pro 3.0 and Zoom Pro algorithms

• HIKMICRO Shutterless Image System (HSIS)

• 0.39” 1024×768 AMOLED display

• Up to 5 hours’ operation at -20°C

• Lightweight, pocket-sized 296.5 g design
