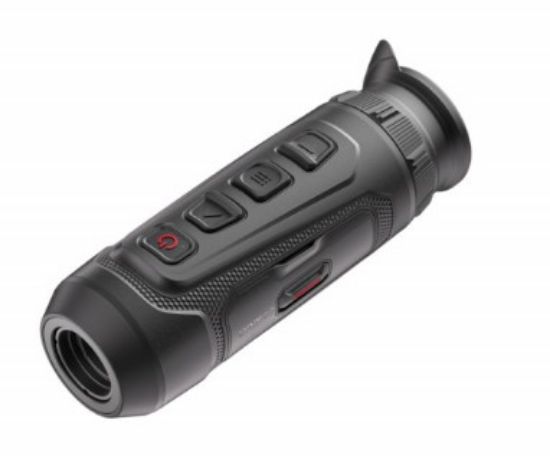

HIKMICRO Lynx LE15 3.0 15mm Thermal Monocular

Hikmicro Lynx Thermal Monocular

The HIKMICRO Lynx 3.0 LE15 delivers compact, reliable thermal performance for outdoor professionals, wildlife observers, and tactical users. Featuring a 256×192 thermal detector and a 15mm F1.0 lens, it provides 2.2× base magnification, an 11.7° field of view, and a detection range of up to 750 metres, giving clear, dependable imaging at short and medium distances.

AI-Enhanced Clarity

Powered by Image Pro 3.0 and Zoom Pro algorithms, the LE15 ensures sharp, high-contrast images in all lighting and environmental conditions. Its HSIS shutterless system delivers smooth, silent operation, allowing uninterrupted observation for discreet or sensitive tasks.

Portable and Durable

Weighing just 296.5 grams, the LE15 is compact, lightweight, and comfortable to carry in the field. Its replaceable 18650 battery provides up to 5.5 hours of runtime at -20°C, supporting extended missions. IP67-rated construction offers dependable protection against dust and water, ensuring rugged reliability outdoors.

Versatile Features

• Display: 0.39” 1024×768 AMOLED

• Focus Mode: Focus-free, minimum distance 7 m

• Magnification: 2.2× – 17.6× (8× digital zoom)

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Advanced Functions: PIP, Hotspot, Hot Track, Distance Measurement, Audio Recording

• Connectivity: Sync Pro, WiFi sharing

• Protection: IP67 rugged design

Technical Highlights

• Max Resolution: 256×192 | Frame Rate: 50 Hz | NETD: <20 mK (@25°C)

• Response Waveband: 8–14 μm | Exit Pupil: 6 mm | Eye Relief: 20 mm

• Weight: 296.5 g | Battery: Replaceable & rechargeable 18650

• Work Temperature / Humidity: -30°C to 45°C; Humidity ≤90%

Specs

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Lens (Focal Length): 15 mm, F1.0

• Min. Focusing Distance: 7 m

• Field of View (H × V), Degrees / m @100 m: 11.7° × 8.8° / 20.5 m × 15.4 m

• Detection Range: 750 m

• Contrast & Brightness Adjustment: Yes

• Diopter Range: -5 D to +3 D

• Tone Adjustment: Cold, Warm

• Zoom Pro: Yes

• HSIS: Yes

• Image Pro 3.0: Yes

Features

• 256×192 thermal detector with NETD < 20 mK

• 15mm F1.0 lens with 750 m detection range

• AI-powered Image Pro 3.0 and Zoom Pro algorithms

• HIKMICRO Shutterless Image System (HSIS)

• 0.39” 1024×768 AMOLED display

• Up to 5.5 hours’ operation at -20°C

• Lightweight, pocket-sized 296.5 g design
